A very wide range of accessories is offered that will ensure you have a flameproof connection on all of your machines and panels. These glands can be used on continuous miners, shuttle cars, roof bolters and flameproof motors.
Adaptor plates, socket blocks and elbows are mainly used on flameproof equipment to adapt from one type of socket to another. Adaptor plates can be used to change a socket to a gland entry.
The fuse holders were designed for high-speed fuses rated from 1 kV-1.5 kV AC/DC. It is a small unit and easily added in an electrical system. The main protection is intended for UPS systems, AC and DC drives, small motors and transformers on the primary and secondary side. The 1000 V fuse holder is mainly used to protect electrical circuits and transformers in electrical panels. A whole range of fuses are available that can be supplied, and consists of 1:2:4:6.3: 10 and 16 A.
Description:
- Nylon body molded
- Screw-on cap
- Special material as conductors
- Quick connect or soldering terminals
Benefits:
- Minimize damage to electrical components
- Short circuit
- Overloading of circuit
- High temperature resistance
Technical data:
Mounting: Panel mount, transformer or in a special fuse holder bracket
Mounting area: Two side holes for M4 screws.
Terminal: 6.35 x 0.8 lugP/On or solder
Rated voltage: 1 kV-1.5 kV AC/DC
Rated current: 16 A
Rated insulation voltage U(V): 1 500 RMS/min
Protection Class: Class I
Soldering methods: Iron
Solderability: 350 degrees
Fuse sizes: 10 mm x 85 mm
Rated fuses to be used: 2 A,3 A,4 A,5 A,6.3 A,10 A and 16 A
Three different types of key switches are manufactured, namely high security, normal Ronnis and electronic key switches.
Pilot lights come in two different sizes namely M20 and M25 x 1,5 mm. There are also three different colours, namely red, green and orange. The voltage on them come in 12, 24, 110, 220 V.
These accessories can be used on all flameproof enclosures to control the workings of an electrical device. Push buttons are buttons that change the electrical circuit workings.
Flameproof ACCESSORIES
Offering one of the widest range of flameproof accessories we bring functionality to all of your flameproof requirements.
CAMERA SYSTEMS
Jewll’s camera system consists of various equipment that can vary to the customer’s specific requirements. We offer compact thermal imaging cameras that significantly reduce the hazards of driving in places with little to no visibility, especially underground. It enables drivers to see much further, with improved clarity compared to standard vision or headlights.
Drivers can detect and monitor people passing by a vehicle, animals, or objects on or near the road, allowing more time to react to any potential danger.
The PathFindIR incorporates an uncooled 320x240 pixels micro bolometer. This maintenance-free system delivers crisp video images which can be displayed on virtually any display that accepts composite video.
The PathFindIR is equipped with a 19-mm wide-angle lens. It gives you an extremely wide field of vision (36°), resulting in excellent situational awareness.
The PathFindIR combined with the complete flameproof enclosure is extremely rugged. Its vital core is well protected against humidity and water. The PathFindIR camera itself operates between -40 °C and +80 °C.
The camera also has a built-in heater to defrost its protective window. The heater is capable of defrosting a 2-mm layer of ice frozen to the window within 15 minutes when ambient temperature is -30 °C and wind speed against the window is 100 km/h. The heater is automatically powered when the window temperature is less than +4 °C and powered down when the window temperature is more than +6 °C. This ensures a clear lens and perfect infrared images displayed on your monitor even in extremely cold environments.
Features

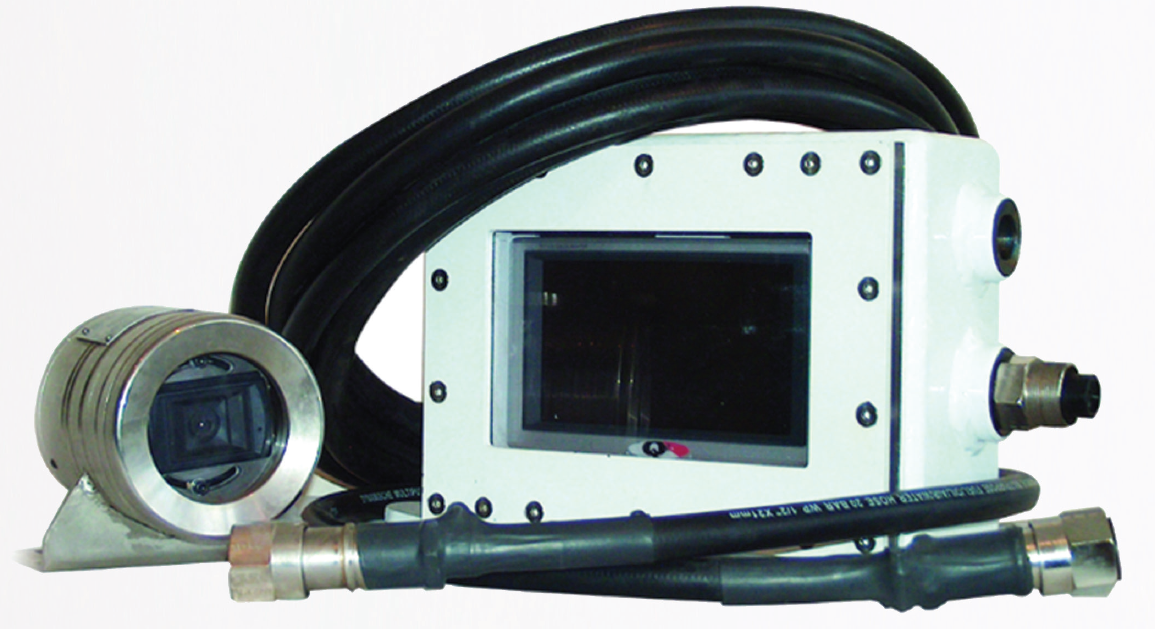

A flameproof camera housing fitted with a FLIR PathFindIR camera
A trailing cable fitted to the back of the housing to customer’s specified length for wiring purposes
A flameproof monitor housing, fitted with a monitor/screen to display the camera footage
Alternatively the dashboard of a machine can be fitted with a monitor and the camera can be wired to it
Custom designs can also be done to house both the camera and monitor according to customer specification flameproof monitor housing, fitted with a monitor/screen to display the camera footage
Surface cameras are used on diesel and petrol tankers for monitoring and detecting incidents. These cameras can be used on oil rigs, petrol chemical plants and other hazardous areas. The cameras also have fast auto focus lens and high resolution image sensors and a high-capacity battery. The camera is enabled to take detailed images in dark and confined spaces due to an extremely light sensitive image sensor as well as a powerful LED light.
The camera features include:
High-performance dome camera for indoor and outdoor use
Applicable as a day or night system with detailed 6 MP colour or black and white sensor
Wide-lens variety from 8° to 180° fish eye
The right lens and sensor combination are possible for each application
Intelligent 3D motion detection and video analysis
Reduced energy costs
Power consumption < 5 W
Virtually maintenance free (IP66)
Weatherproof, operates reliably from -30 °C to 50 °C
flameproof lighting
Jewll Industries manufactures and supplies a wide range of both flameproof and non-flameproof lighting equipment. We specialise in lighting for mobile mining machines, stationary equipment as well as underground walkways.
Our lighting equipment includes warning lights, directional lights, indication lights, head lights and many more.
Better known as a machine area light to be fitted on machines and switchgear thereby ensuring safe visibility around the machine and/or switchgear.
The flameproof area flasher with battery back-up is designed and developed for mobile machines that have stopped with no power. By pressing the back-up flasher push button the flasher will light up to make the machine easily visible. An extra six to eight hours battery life is thus provided.
The flasher and siren are assembled in a single flameproof housing to save space when mounted on machines. These units can be fitted with either multi-toned or multi-coloured flashers.
A uniquely designed Jewll product for use on machine lock-out systems.. This will allow the supervisor to bypass the machine safety system to do maintenance on the machine.
These units are designed to display the voltage, amps and hours operated of any machine at any given time.
The flameproof vehicle lights are designed in two different sizes that each provides the required 10 lux at 20 m as per DMR specifications.
Various colours of indication lights are manufactured for surface and underground panels. These are used to indicate safe, hazardous and emergency situations. Live-line indication lights can be connected straight to a 1000 V supply and is there to indicate that all three phases are in working order.
Flameproof Enclosures
Featuring only the best materials, our flameproof enclosures are not only of the highest quality, but will withstand the harshest environments. Our panels can be customised to suit your every need. We also specialize in any custom-designed enclosures.
These boxes can be used on either scoops, LHDs and other mobile machines that require a battery back-up function.
Compressor panels are manufactured in various sizes ranging from 20 kW to 400 kW. These panels can be wired with different overloads as well as in different voltages.
Gully boxes are manufactured and populated to customer requirements and specifications.
Starter panels can be manufactured from 3.7 kW up to 400 kW, flameproof and non-flameproof. Voltages vary from 380 to 1000 V.
flameproof junction boxes
Small and compact, the flameproof junction box offers a multi-purpose enclosure built to accommodate any electrical connections or flameproof accessories. These functional enclosures are durable and can be applied in almost any hazardous environment.
These accessories are used on flameproof machines to ensure easy functionality of the machines, for example starting, stopping, resetting and tripping.
An isolator is a mechanical switching device that, in the open position, allows for isolation of the input and output of a device. An Isolator is a device used for isolating a circuit or equipment from a source of power.
Jewll has embarked on several underground flameproof repairs with great success. Flameproof audits to DMR specifications has also been conducted at several underground coal mines. Contact us for more information.
Underground, on-site flameproof audits and repairs
Jewll Industries was the first flameproof company to implement the concept of going underground and to repair and audit products on-site. We have since perfected this to a fine art. Since 1996 Jewll has repaired many flameproof enclosures, CMs, shuttle cars, roof bolters and a variety of flameproof enclosures. Jewll also has the means to audit mining equipment underground and we keep record of all flameproof equipment to ensure that the mine complies with DMR regulations.
Communication
Making underground communications possible.
Introducing C-Connect, a CDMA underground network as well as a comprehensive mining specific product range which includes the direct mode radio (cellular phone) – herein further referred to as DM cellular phone. The DM cellular phone combined with a CDMA network offer advanced modern technology suitable for critical and emergency infrastructures and for operations and services that demand permanent and affordable communications.
The DM cellular phone offers dual network support to minimise “no communication” situations. It offers communication from cellular phone to cellular phone/groups, as well as normal CDMA network communication.
Other products included in the technology specially designed for real-time vibration monitoring and early warning of fatigue and automated maintenance notification. The technology is ideal for critical vibration monitoring and performs Fast Fourier Transforms real-time on all axes to identify new frequency deviations.
Network advantages
Private network
Secure data transmission due to CDMA topology
Supports a frequency range up to 800 MHz
Multiple customer premises equipment available, e.g. tablets, cellular phones and smart phones
Network can be easily extended
Server based
Telkom Cloud access
PABX access
Other
Jewll also supplies a wide range of other mining equipment such as transformers and thermal observation tools.
A wide range of control transformers and lighting transformers in different KvA ratings is supplied. We have embarked on new ventures of repairing flameproof and non-flameproof transformer tanks, from 200 KvA to 2.5 MvA. The latter also includes repairing and repopulating of LV and HV compartments.
For proto teams in mine disasters
The limitation of sight and light in the mine, especially during power failures and mine disasters, makes it necessary to have an instrument capable of locating thermal heat radiated by humans. This will enable proto teams to track and locate humans in the event of a disaster/power failure when they are unable to indicate or communicate their location.
After investigation and trials by Jewll, the thermal observation tool has been proven capable of meeting the need in mines to be able to locate humans in such unusual situations. This unit can now be used in coal mines due to its certification which renders it suitable for use in hazardous environments.
This magnificent compact, lightweight thermal observation tool, namely the LTO-Tracker, is powered by a CR123 lithium battery and is 14.2 cm long, weighing around 280 g. It stands out as a compact lightweight compared to standard thermal devices used in the industry.
The LTO-Tracker also comes with a digital 6 x zoom facility, a 21⁰ angle of vision, a heat sensor with a resolution of 206 x 156, a high fast-frame image frequency of 30 Hertz and six selectable colour palettes.
The manufacturer claims an operating range of up 549 m.
After switching it on, the LTO-Tracker is fired up and ready to go within three seconds. The round ocular has a diameter of 30 mm and a display resolution of 240 x 204 pixels.

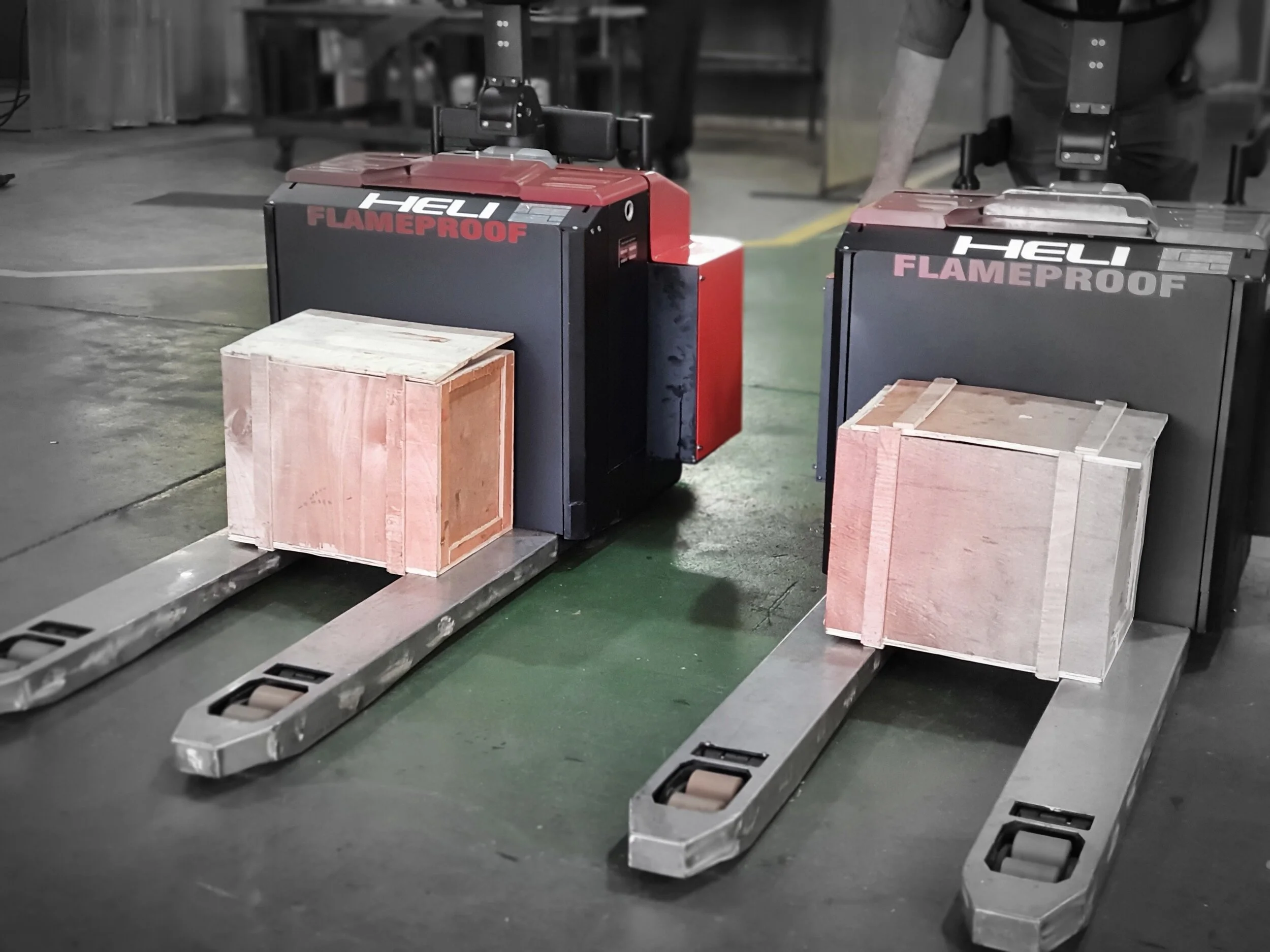

The worlds first flameproof pallet jack with nylon steering wheels and stainless steel tandem load wheels that can be used in spray booths, petrochemical plants and all hazardous areas, designed and developed by Jewll. It is certified for use on surface and underground.

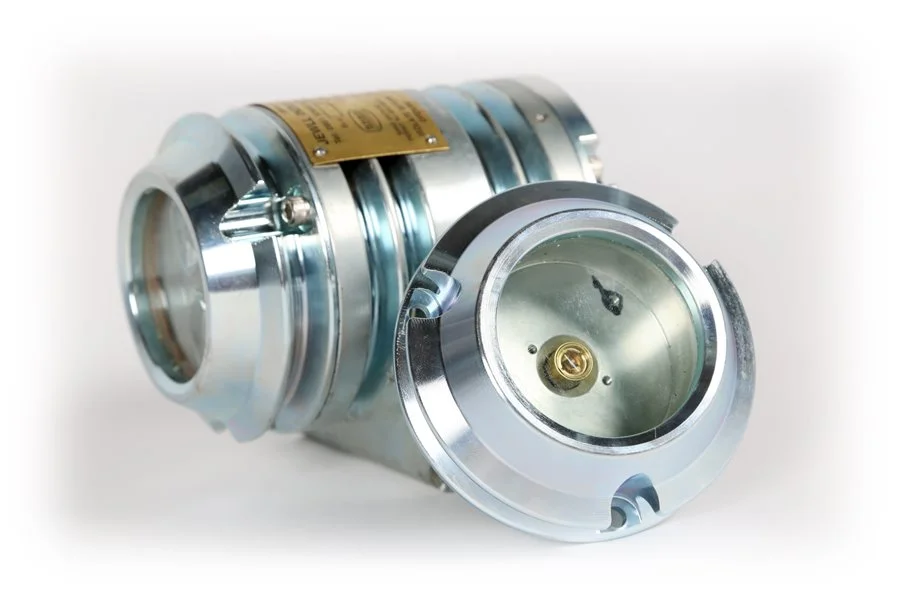

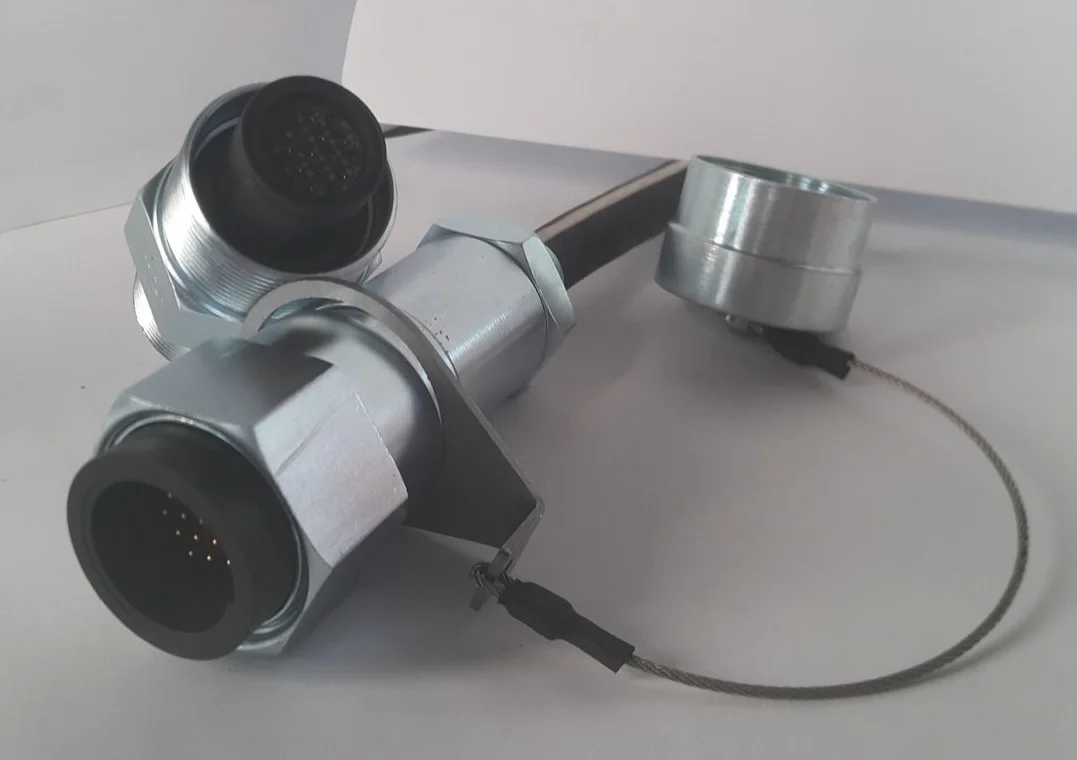

The quick disconnector was designed for flameproof underground and surface areas to give quick access for replacements of cameras, lights, generators, control stations and many more. Simply unscrew the unit and replace with another unit. No opening of flameproof boxes and hot-work permits needed for this. The change can be done with uninterrupted power on the unit.
This system will ensure that your connections are always done in the same manner.
Advantages
Saves up to 90 percent of your time
Higher performance characteristics
RFI fingers available for AFD 57 only
Simplified assembly procedures
Release system from the rear of the connector
No hot-work permits needed
Dust cover if unit is not in use
No artisan needed for replacement of products
IP65
From 3-pin to 19-pin
Hard plastic socket interface prevents penetration of bent pins
Reduced assembly and rework costs
Available in nine shell sizes and 27 various insert arrangements
Completely sealed to protect against rigorous environments
Hermetically sealed electrical connectors in DBC version
Triple wire seal
Mechanical retention of insert into shell by means of snap ring
Interfacial seal ensured by compression of insert and static/dynamic seal
Contacts individual sealing at coupling stage by compression of elastomer conical risers on hard insert
Anti-friction washers for constant mating force
Insert to shell sealing with potting
Connector's rear part fitted with a teeth anti-rotation system assuring an effective tightening and clamping
