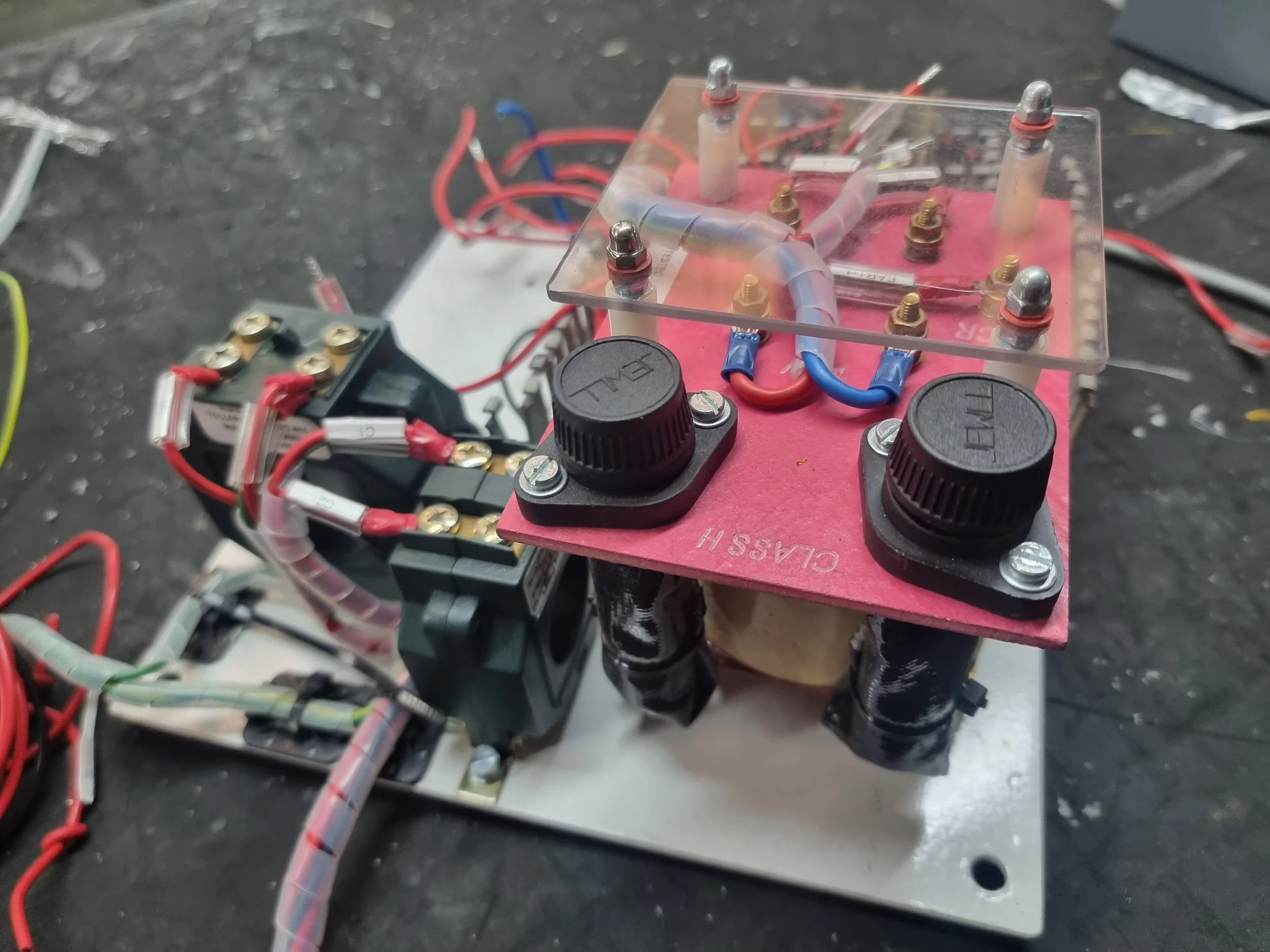

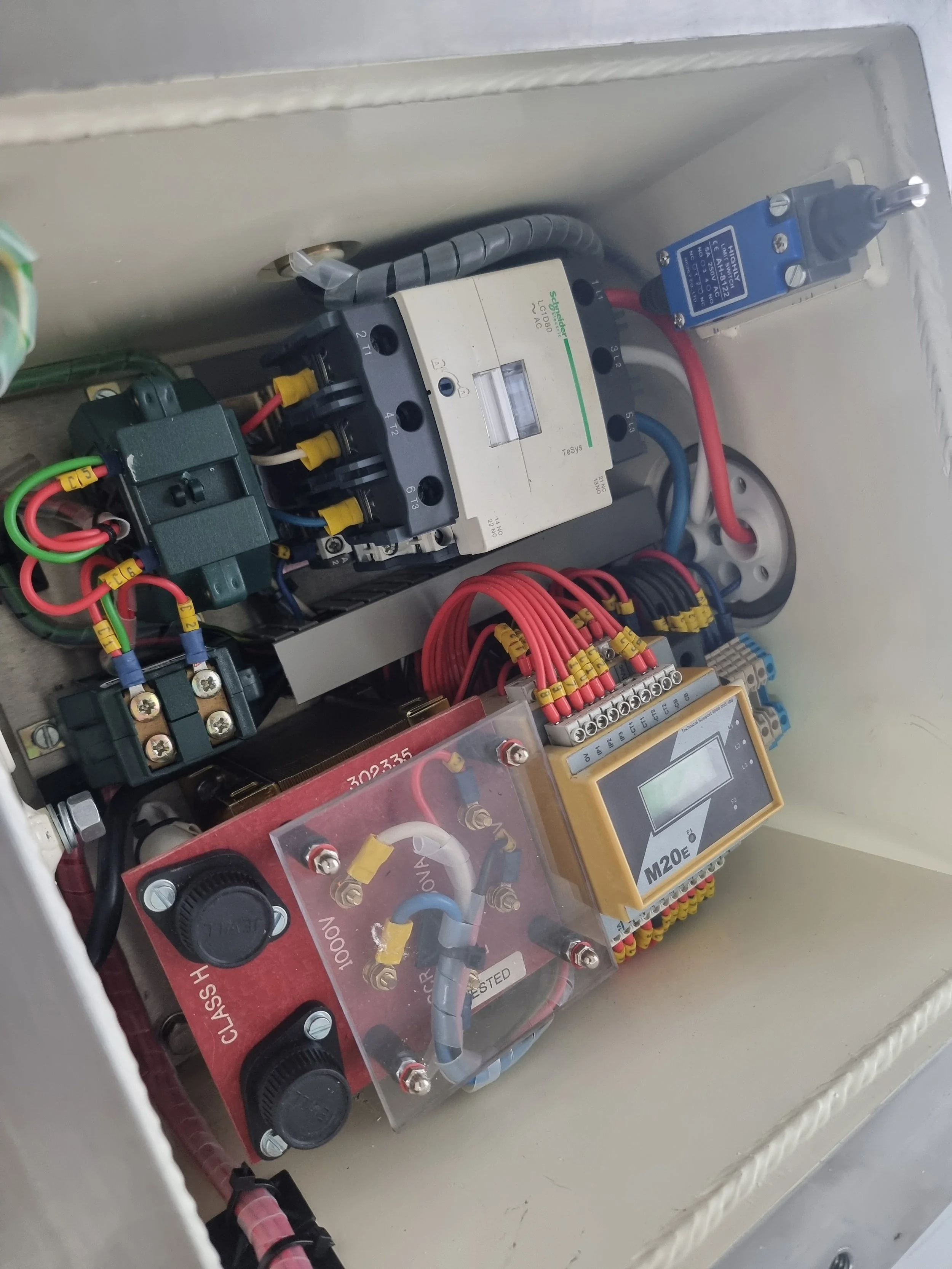

The fuse holders were designed for high-speed fuses rated from 1 kV-1.5 kV AC/DC. It is a small unit and easily added in an electrical system. The main protection is intended for UPS systems, AC and DC drives, small motors and transformers on the primary and secondary side. The 1000 V fuse holder is mainly used to protect electrical circuits and transformers in electrical panels. A whole range of fuses are available that can be supplied, and consists of 1:2:4:6.3: 10 and 16 A.

Description:
- Nylon body molded
- Screw-on cap
- Special material as conductors
- Quick connect or soldering terminals

Benefits:
- Minimize damage to electrical components
- Short circuit
- Overloading of circuit
- High temperature resistance

Technical data:

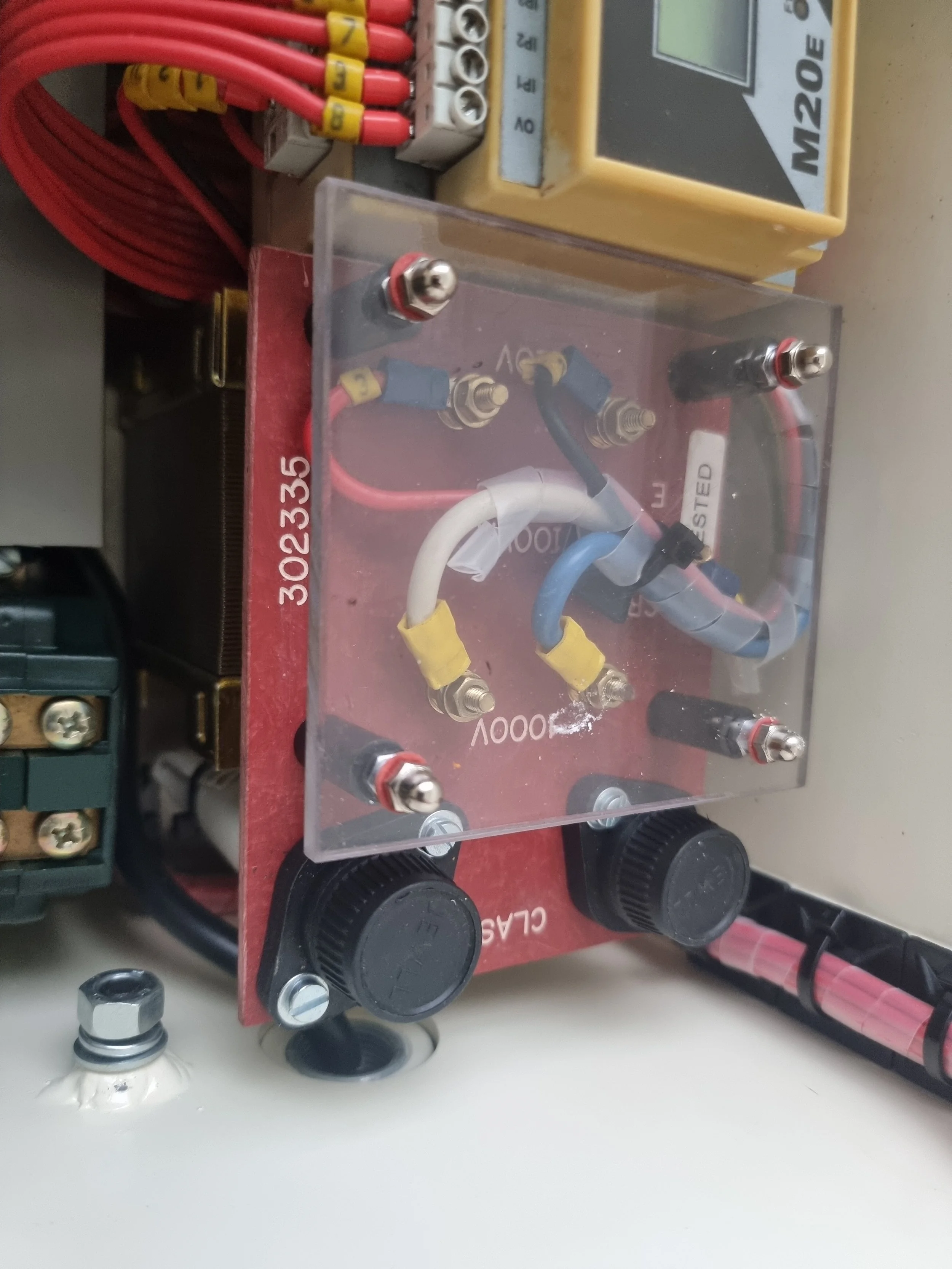

Mounting: Panel mount, transformer or in a special fuse holder bracket
Mounting area: Two side holes for M4 screws.
Terminal: 6.35 x 0.8 lugP/On or solder
Rated voltage: 1 kV-1.5 kV AC/DC
Rated current: 16 A
Rated insulation voltage U(V): 1 500 RMS/min
Protection Class: Class I
Soldering methods: Iron
Solderability: 350 degrees

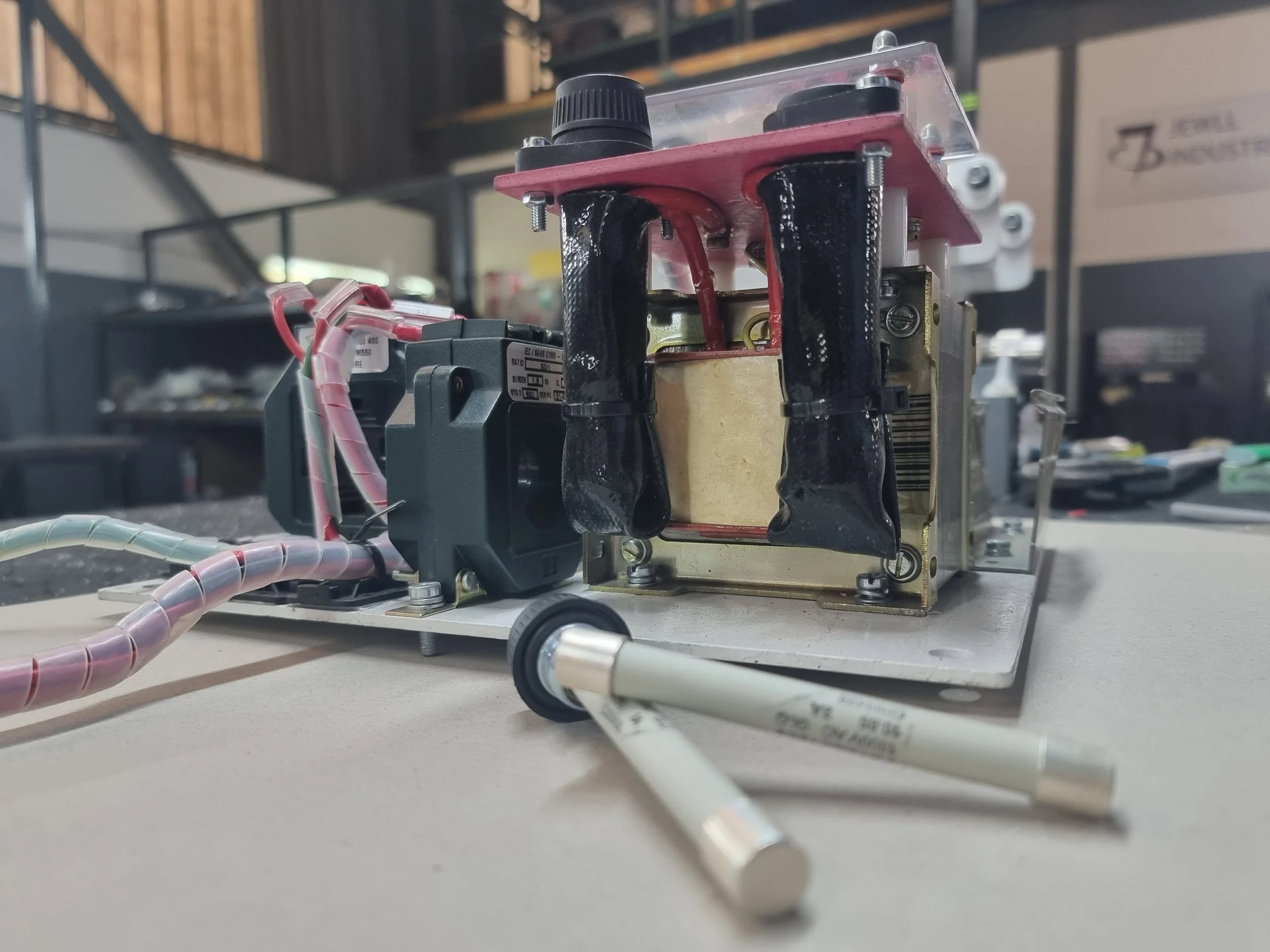

Fuse sizes: 10 mm x 85 mm
Rated fuses to be used: 2 A,3 A,4 A,5 A,6.3 A,10 A and 16 A
