Quick Disconnects

Quick Disconnects

$0.00

The quick disconnector was designed for flameproof underground and surface areas to give quick access for replacements of cameras, lights, generators, control stations and many more. Simply unscrew the unit and replace with another unit. No opening of flameproof boxes and hot-work permits needed for this. The change can be done with uninterrupted power on the unit.

This system will ensure that your connections are always done in the same manner.

Advantages

  • Saves up to 90 percent of your time

  • Higher performance characteristics

  • RFI fingers available for AFD 57 only

  • Simplified assembly procedures

  • Release system from the rear of the connector

  • No hot-work permits needed

  • Dust cover if unit is not in use

  • No artisan needed for replacement of products

  • IP65

  • From 3-pin to 19-pin

  • Hard plastic socket interface prevents penetration of bent pins

  • Reduced assembly and rework costs

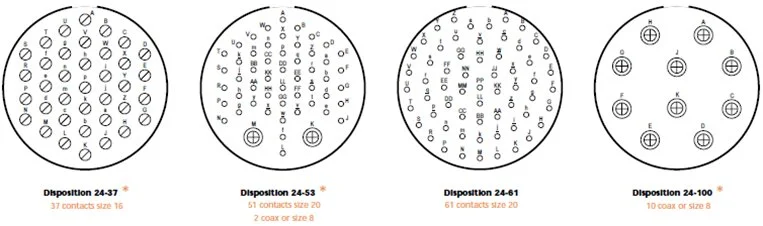

  • Available in nine shell sizes and 27 various insert arrangements

  • Completely sealed to protect against rigorous environments

  • Hermetically sealed electrical connectors in DBC version

  • Triple wire seal

  • Mechanical retention of insert into shell by means of snap ring

  • Interfacial seal ensured by compression of insert and static/dynamic seal

  • Contacts individual sealing at coupling stage by compression of elastomer conical risers on hard insert

  • Anti-friction washers for constant mating force

  • Insert to shell sealing with potting

  • Connector's rear part fitted with a teeth anti-rotation system assuring an effective tightening and clamping
