This is a steel constructed refuge chamber that provides quality breathing air to miners in an emergency underground. They serve as a cache of clean, breathable air, ideal for any situation where workers could become trapped.

Chambers can be designed to meet individual customer requirements, including physical size and equipment installed.

Primary operation includes attaching to the mine’s main airlines and power sources for an indefinite supply of breathable air and electric power. If mine air is lost, an on-board carbon dioxide scrubber and oxygen cylinders provide 36 to 48 hours of breathable air. If mine power is lost, 36 to 48 hours of battery back-up power operates the CO2 scrubber, air conditioner, lighting and warning systems. Air conditioning units are included to regulate the interior temperature and humidity. Stations come standard with forklift slots, lifting and towing lugs to facilitate easy placement.

Features

• A place of safety and refuge in the event of an emergency underground

• An essential part of an emergency response plan

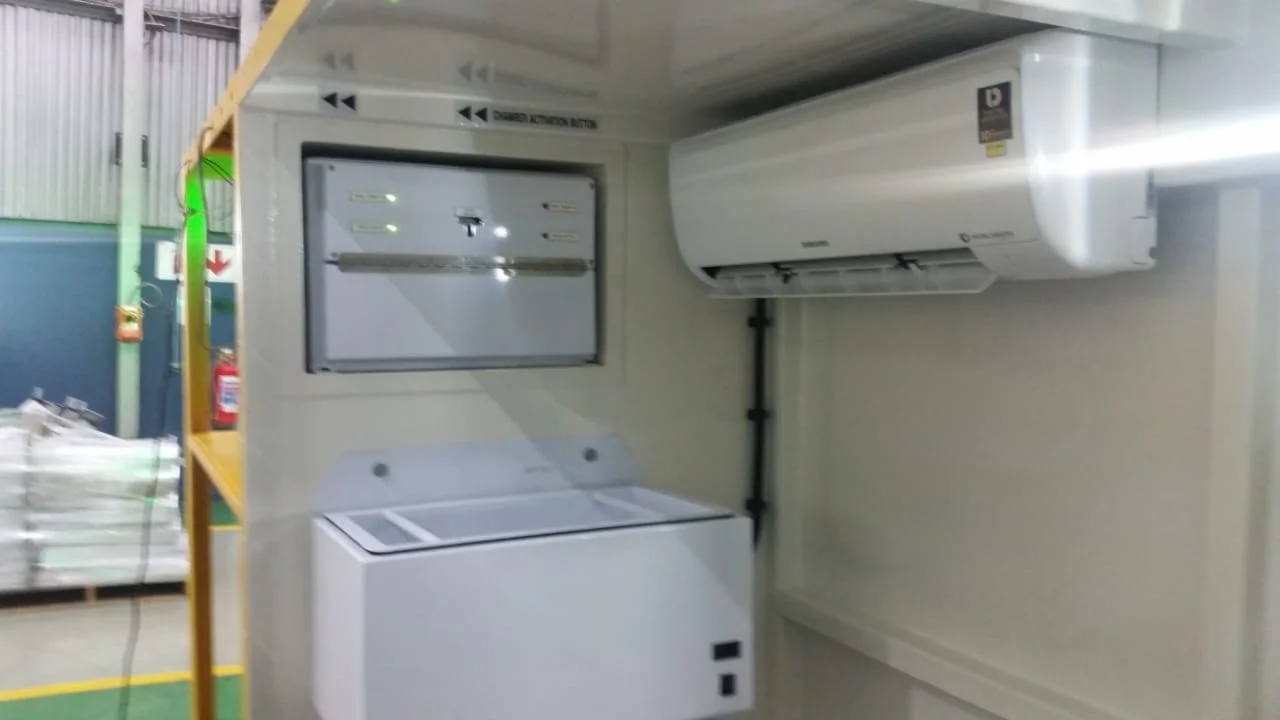

• Remote control reverse cycle air conditioner to maintain comfortable environment

• 36- to 48-hr battery back-up power and back-up air supplies.

• Low-volt LED lighting

• Cushioned seating for all occupants

• Long-life drinking water and food

• Escape hatch

• Chemical toilet in a private compartment

• Storage areas

• Airlock entry with heavy plastic curtains to minimize contaminants entering the station

• Fire extinguisher

• High-quality mine air filter system (AS 1715/16)

• External LED location lights and warning siren

• Fully reflective signage for greater visibility

• Portable, to move with production

• Providing air, cooling, communication and  water for an extended period of time

• Life sustaining from 24 to 96 hours

• Sized by the number of occupants 4, 6, 8, 10, 20, 26, 30, 36 and so forth
